Preventing Thread Stripping in Structural Connections: Synergistic Control of Proof Load and Hardness for ASTM A563 Grade DH Nuts with ASTM A490 Bolts
In structural steel connections, the integrity of the bolted joint depends on a fundamental principle: the nut must be at least as strong as the bolt. For high-strength ASTM A490 bolts (150 ksi minimum tensile strength), the specified mating nut is ASTM A563 Grade DH. A mismatched or lower-grade nut creates a "weak link" where the nut threads can strip before the bolt reaches its full load capacity—a hidden failure mode that can lead to catastrophic joint failure. This article explains how the synergistic control of proof load and hardness ensures that thread stripping does not occur.
1. Strength Matching: The Core Principle
The selection of the correct nut grade is the first line of defense against thread stripping. ASTM A490 bolts are among the highest-strength structural bolts available, and they demand a nut with commensurate strength.
| Bolt Grade | Minimum Tensile Strength | Recommended Nut (Plain) | Nut Proof Load Stress |
|---|---|---|---|
| ASTM A490 (Type 1) | 150,000 psi | ASTM A563 Grade DH | 175,000 psi |
| ASTM A490 (Galvanized) | 150,000 psi | ASTM A563 Grade DH (Lubricated) | 150,000 psi |
| ASTM A490 (Type 3, Weathering) | 150,000 psi | ASTM A563 Grade DH3 | 175,000 psi |
2. Proof Load: The Quantitative Guarantee Against Stripping
Proof load is the specified axial tensile load that a nut must withstand without thread stripping or permanent deformation. For an ASTM A563 Grade DH nut, the proof load stress is 175,000 psi for plain (non-coated) nuts.
- Design Intent: The nut's proof load exceeds the bolt's minimum tensile strength (150,000 psi for A490). This ensures that under the bolt's design load, the nut will not strip. If a lower-grade nut (e.g., Grade C) were used, the nut's proof load would be lower, creating the risk that the nut threads would fail before the bolt reached its specified capacity.
- Coated Fasteners: For hot-dip galvanized structural assemblies, the proof load stress for Grade DH nuts is reduced to 150,000 psi. This reduction accounts for the dimensional changes and friction effects of the zinc coating. Galvanized DH nuts are also required to be lubricated to minimize galling during assembly.
3. Hardness: The Material-Level Safeguard
Hardness (Rockwell C, HRC) is the second critical control parameter. It ensures that the nut material has the necessary strength and ductility to resist deformation under load. ASTM A563 Grade DH nuts are quenched and tempered to achieve a specified hardness range.
| Nut Grade | Hardness Range (HRC) | Purpose |
|---|---|---|
| ASTM A563 Grade DH | C24 – C38 | Ensures adequate strength to meet proof load, while maintaining enough ductility to avoid brittle fracture. |
| ASTM A563 Grade C | B78 – C38 | Lower minimum hardness; suitable for A325 bolts but insufficient for A490. |
- Adequate Strength and Ductility: The C24 minimum hardness ensures the nut has the material strength to meet its proof load. The C38 maximum hardness prevents the nut from becoming too brittle, which could lead to fracture under shock loading or during installation.
- Compatibility with Bolt Hardness: ASTM A490 bolts have a hardness range of C33–C38. The Grade DH nut's hardness range (C24–C38) is designed to be compatible, ensuring that under load, the threads of both components deform in a predictable and controlled manner, reducing the risk of thread galling or stripping.
4. Synergistic Effect: Proof Load and Hardness Working Together
Proof load and hardness are not independent requirements; they are two sides of the same engineering coin. The proof load test verifies that the nut assembly can sustain the specified load without failure. The hardness test confirms that the material's microstructure has been correctly heat-treated to provide the necessary strength for that proof load. A nut could theoretically meet the proof load requirement with a material that is too hard (brittle) or too soft (prone to deformation), but the hardness range ensures that the nut possesses both the required strength and the necessary ductility for reliable long-term service.
5. Manufacturing and Quality Perspective
Consistent achievement of proof load and hardness specifications requires precise control of material selection, heat treatment, and manufacturing processes. Zhejiang Chance & Union Import and Export Co., Ltd. (Chance & Union) is a family-owned enterprise under SEA Monies Metal Co., Ltd., inheriting 20 years of family experience and quality heritage in metal manufacturing. Relying on Shengzhao Metal's strong production capacity and supply chain advantages, we specialize in the R&D, production and global sales of high-quality metal products. Adhering to the family's pursuit of precision, rigorous working attitude and long-term commitment, we deliver stable and reliable products and services to customers across the globe.
Leveraging the factory's robust R&D and production capabilities, we specialize in high-strength rivets, bolts, nuts, washers, pins, screws, and various non-standard custom parts. Our product range covers materials including stainless steel, alloy steel, aluminum alloy, copper, and special alloys, utilizing processes such as cold heading, hot forging, and CNC machining. Our products are exported to over 25 countries, serving more than 200 clients.

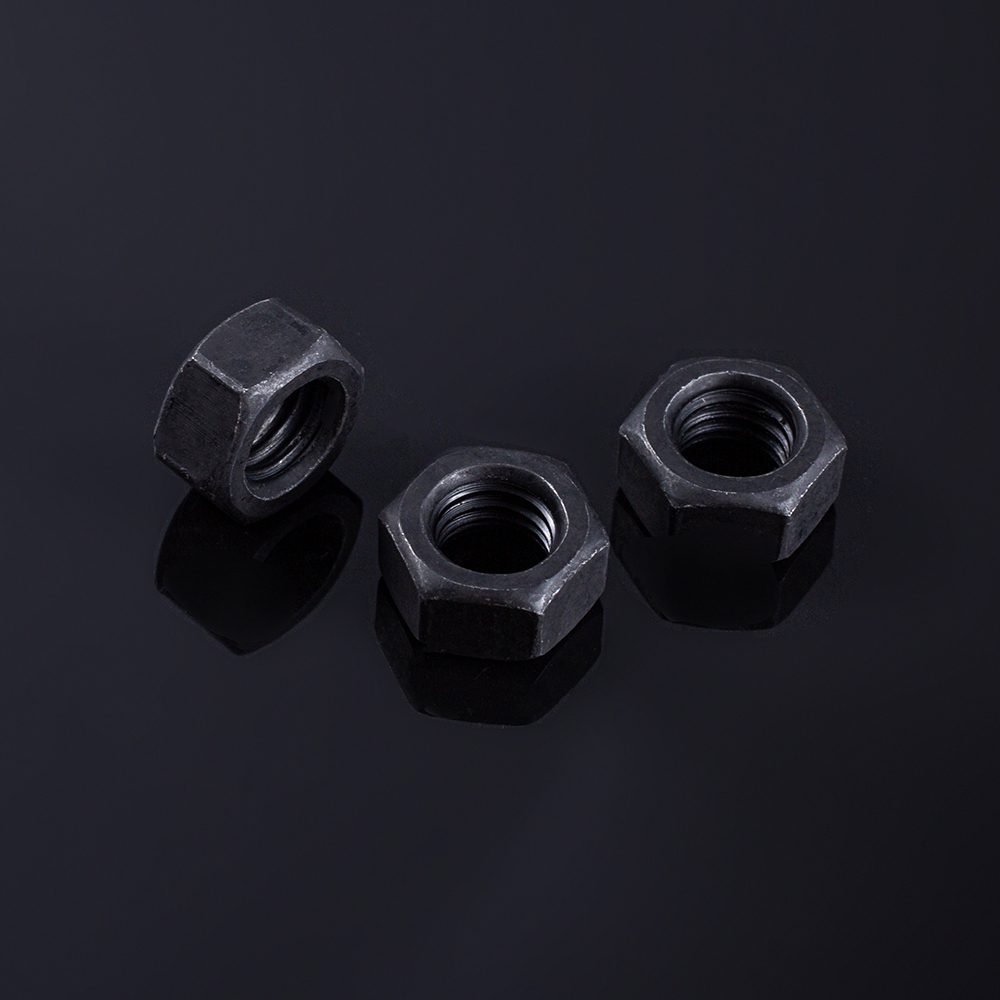

Chance & Union is committed to seamlessly connecting "Manufactured in China" with the international market, providing global customers with one-stop fastening solutions from R&D to mass production through professional technology and exceptional quality. For structural nuts , we provide full material test certificates (MTCs) and proof load test reports for each batch, ensuring compliance with ASTM A563 Grade DH requirements.
6. Frequently Asked Questions (FAQ)
- Q1: Can I use an ASTM A194 Grade 2H nut in place of an A563 Grade DH nut with an A490 bolt?
A: Yes. ASTM A194 Grade 2H heavy hex nuts are considered an acceptable equivalent for ASTM A563 Grade DH nuts and may be used in place of them. However, for coated applications, the coating, overtapping, lubrication, and rotational capacity testing must comply with ASTM A563 requirements. Zhejiang Chance & Union Import and Export Co., Ltd. (Chance & Union) can supply both A563 DH and A194 2H nuts, and can advise on the appropriate substitution for your specific application. - Q2: What happens if I use a Grade C nut with an ASTM A490 bolt?
A: This is a mismatch that creates a weak link in the joint. A Grade C nut has a lower proof load and hardness than required for an A490 bolt. Under load, the nut threads are likely to strip before the bolt reaches its full tensile capacity, leading to a concealed failure that could cause the joint to fail unexpectedly. Zhejiang Chance & Union Import and Export Co., Ltd. (Chance & Union) strongly recommends following the specified grade matching rules to ensure structural safety. - Q3: How do I verify that a Grade DH nut meets the hardness requirement?
A: Hardness is verified through Rockwell (HRC) testing performed on a representative sample from each production batch. The results are documented on the material test certificate. Field inspectors may also perform portable hardness testing as part of quality assurance, although a calibrated test block is recommended for accuracy. Zhejiang Chance & Union Import and Export Co., Ltd. (Chance & Union) provides hardness test reports with every shipment to confirm compliance.
